Swing-Away Lateral Thoracic Support

Improving trunk control and lateral stability to help maintain proper posture.

The JAY Swing-Away Lateral Thoracic Support was designed to complement our JAY J3 and JAY Syncra backs, providing optimal trunk support and stability for the user. It offers a large range of positioning options and a variety of lateral pad sizes to accommodate a broad range of needs. An easy-to-use push-button lever allows the lateral to swing out of the way for easy transfers.

Find Your Local Dealer

From $397

This price is based on standard configuration only. This item may have multiple additional extras that are not included in the published price. Please see your local authorized dealer for a detailed quote.

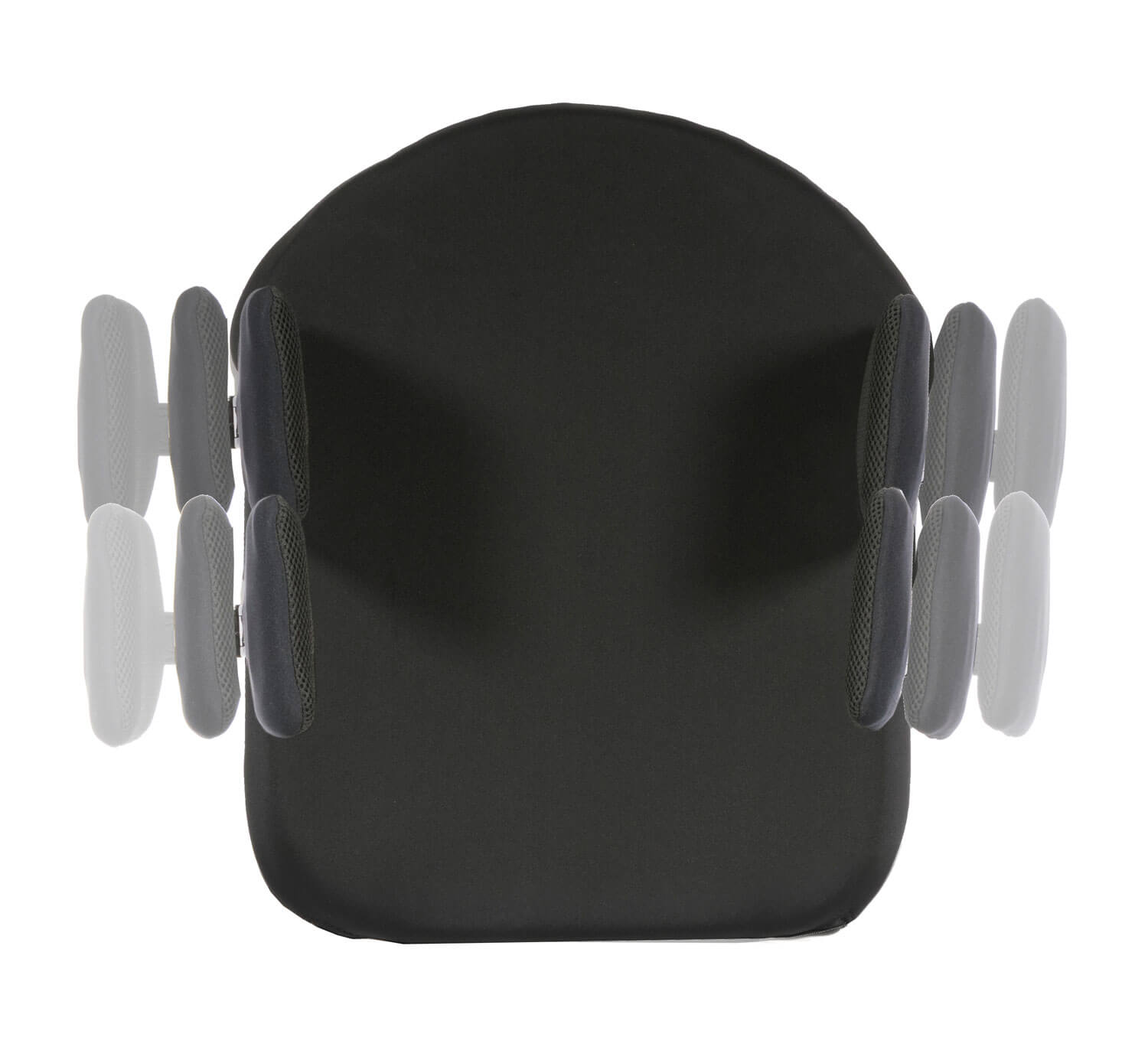

Versatile positioning

The JAY Swing-Away Lateral's slim profile allows it to be mounted either internally or externally on the shell to create a personalized fit. It's available with a variety of lateral pad sizes and longer slots on the pad brackets for flexibility in pad placement. Two can even be placed on one side if necessary, as each lateral is sold separately.

JAY Rotational Swing-Away Lateral Support

Add a third plane of adjustment to allow the lateral to be angled to match the trunk shape and position for the most complex scoliosis. The lateral pads rotate to meet contour angles and precise alignment. These laterals can be placed exactly where needed so that posture is accommodated and protected. Combine the lateral with a JAY back & cushion, a Whitmyer^® headrest, and trunk support to provide optimal positioning for clients.

JAY Rotational Swing-Away Lateral articulation animation

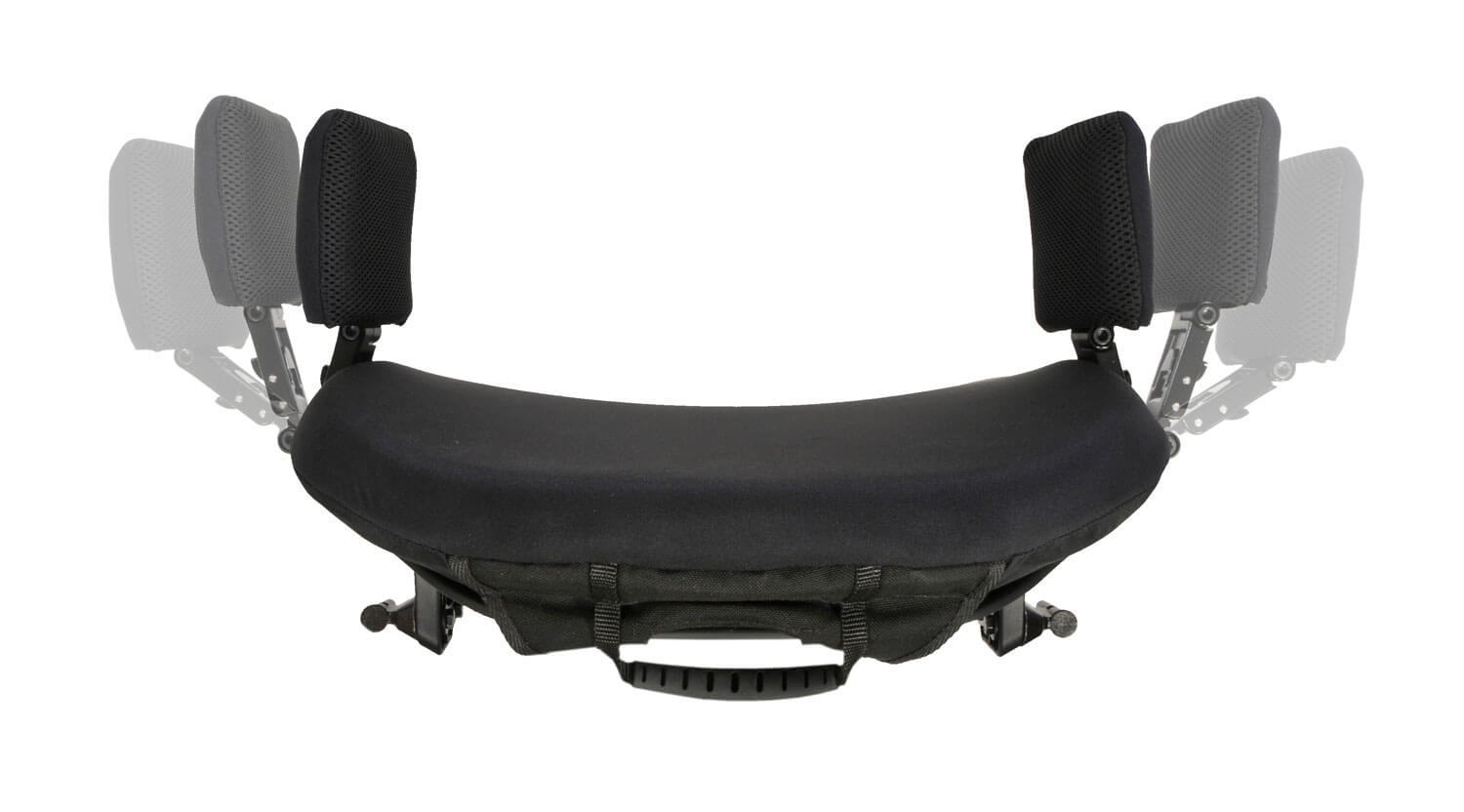

Improved positioning & locking strength

Two pivot points with interlocking teeth allow for 100mm (3.9") of adjustment and improved locking strength. On the JAY Rotational Swing-Away Lateral, an additional two pivot points are added to allow for both lateral and rotational adjustment. This helps to keep the lateral positioned where it's needed to help improve stability, posture, and balance. An easy-to-use push-button lever allows the lateral to swing out of the way for easy transfers.

Upholstery options

Comes standard with a 3DX cover and pad. Stretch, premium leatherette, or reverse Dartex cover options are available through JAY Your Way.

Imágenes & Vídeos

Especificaciones

Product Information

HCPCS Code:

E0956
E1028

Starting Retail Price:$397

Product Type:Positioning Lateral

Dimensiones/Pesos

Product Height:1.75"

Product Width:8.25"

Product Depth:0.7"

Product Weight:0.7 lbs. each

Product Options

Mounting Systems:Mounts either internally or externally on the shell.

Construction:Steel

Contact Surface Material:

3DX
Stretch
Premium Leatherette
Reverse Dartex

JAY Your Way Modifications Available:Yes, select cover options.

Nuestros productos están en constante proceso de mejora, por lo que Sunrise Medical se reserva el derecho de cambiar el diseño de los mismos y las especificaciones indicadas sin previo aviso
