El estándar de calidad superior para la tecnología de rotación en el espacio

El estándar de calidad superior para la tecnología de rotación en el espacio

La Quickie® IRIS® es lo último de inclinación en el espacio para sillas de ruedas. Con 55 ° de rotación inteligente de tecnología espacial, la más amplia gama de opciones de posicionamiento y cuidadores, y numerosos ajustes, es difícil creer que el IRIS es también la más ligera inclinación en el espacio para sillas de ruedas disponibles en la actualidad.

Find Your Local Dealer

From $2775

This price is based on standard configuration only. This item may have multiple additional extras that are not included in the published price. Please see your local authorized dealer for a detailed quote.

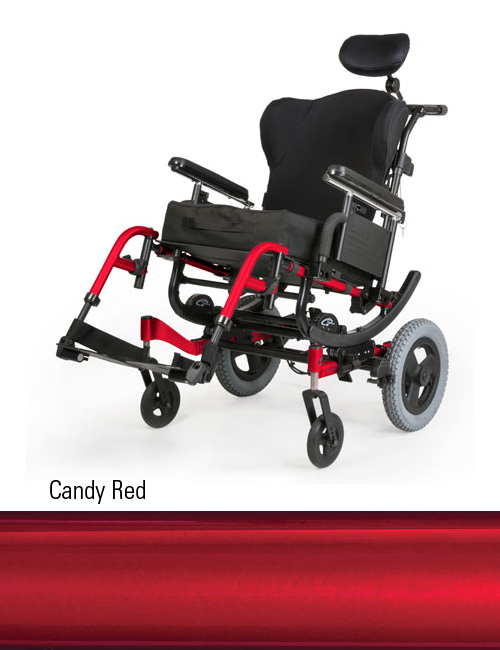

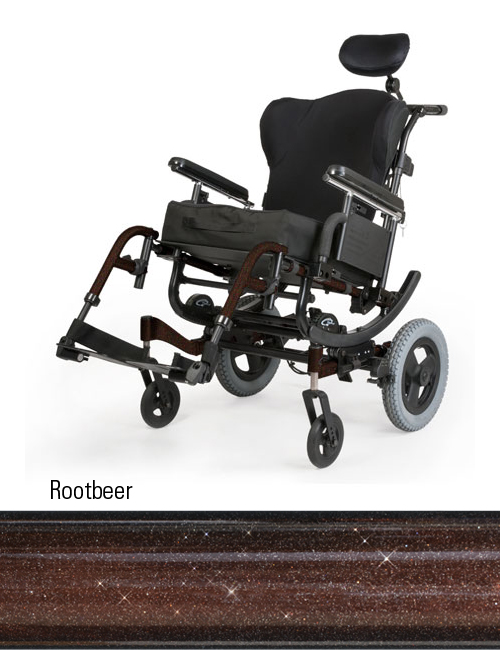

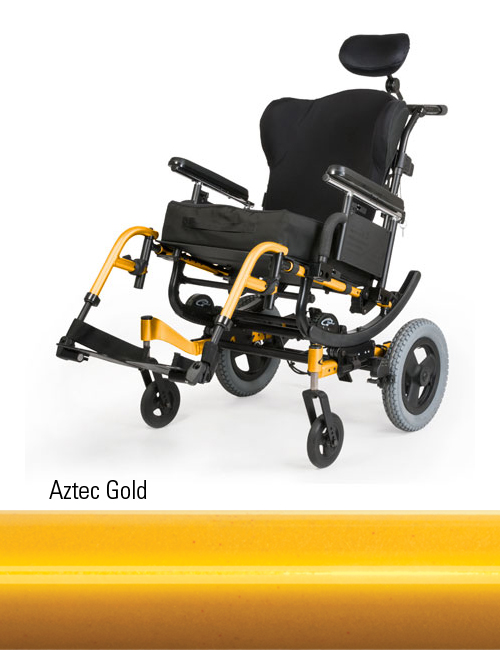

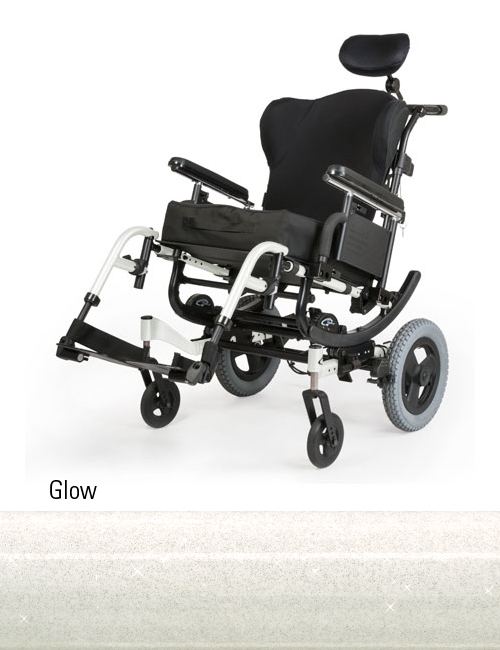

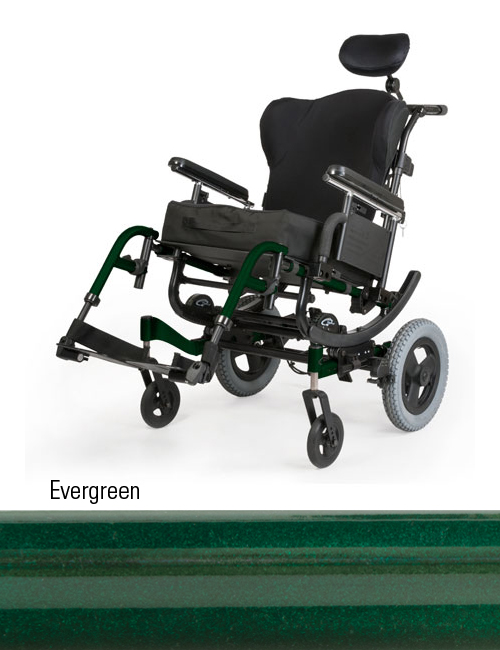

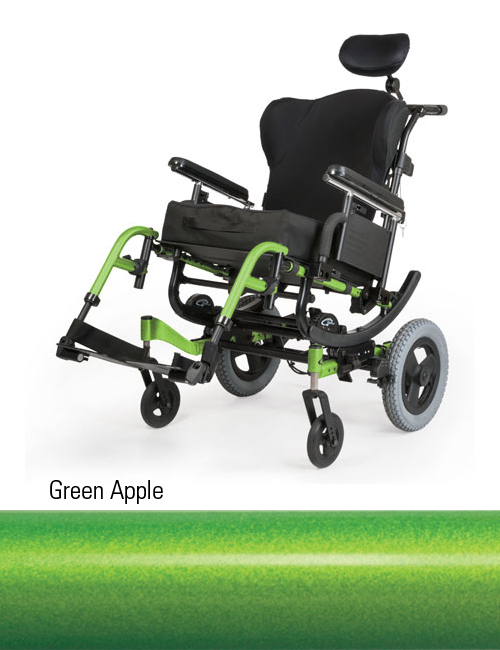

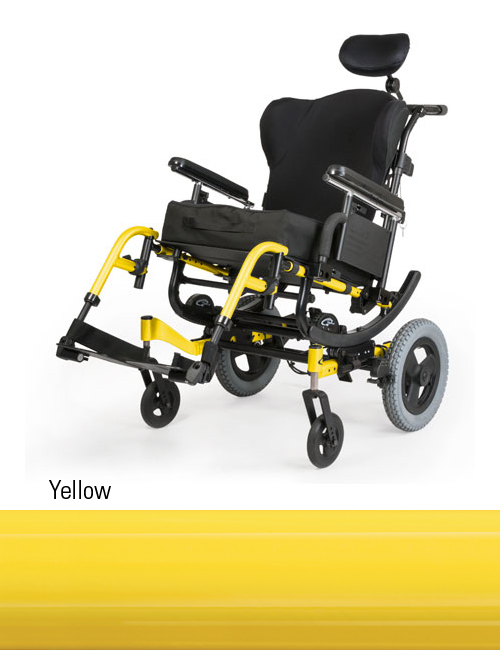

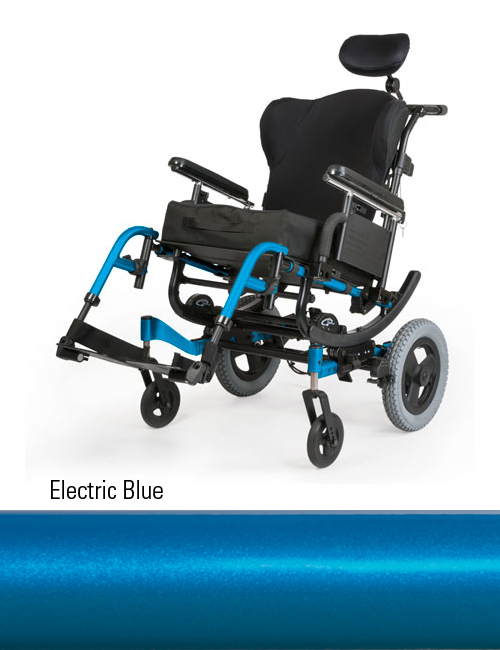

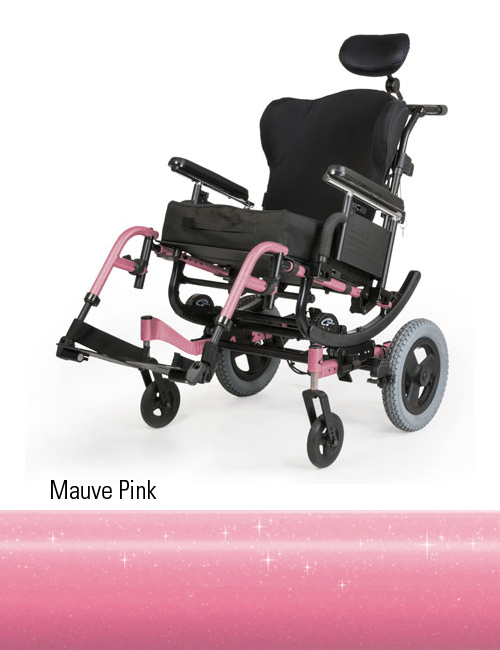

Ver ejemplos simulación de color:

The color options shown are for reference only. They are not intended as accurate representations.

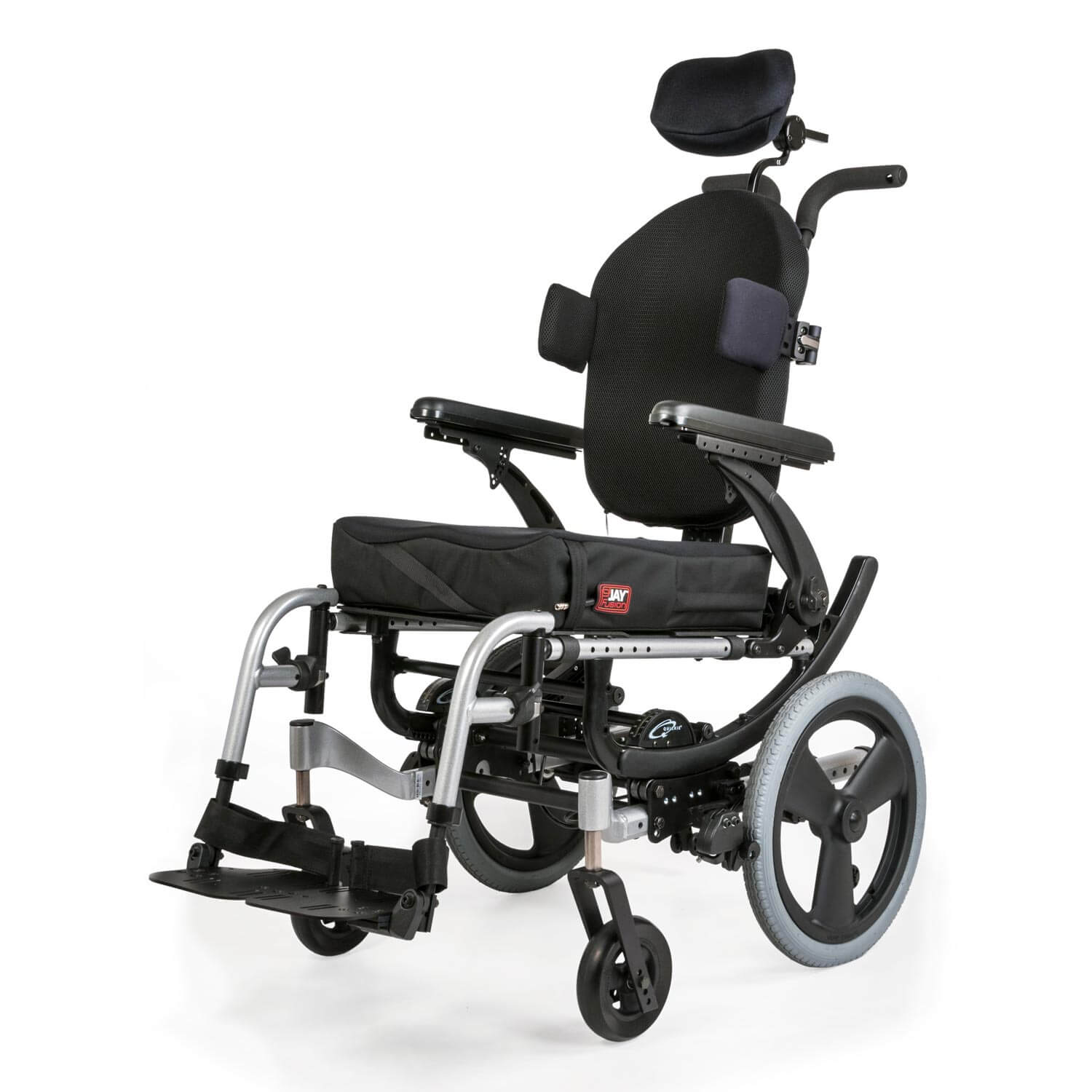

QUICKIE® IRIS Manual Tilt Wheelchair
40° o 55° de Rotación Inteligente de Tecnología Espacial

40° o 55° de Rotación Inteligente de Tecnología Espacial

Rotación inteligente en la tecnología espacial significa la estructura de asiento gira alrededor del centro de la de gravedad del usuario. Esto se traduce en un movimiento de inclinación suave que es fácil para que usted pueda controlar y permite una distancia entre ejes más corta posible que le sea fácil de maniobrar. El IRIS dispone de 40° o 55° de rotación rangos que se pueden establecer para lograr un máximo de 45° o 60° de rotación posterior de posicionamiento superior.

QUICKIE IRIS: From Invention to Perfection

QUICKIE IRIS: From Invention to Perfection

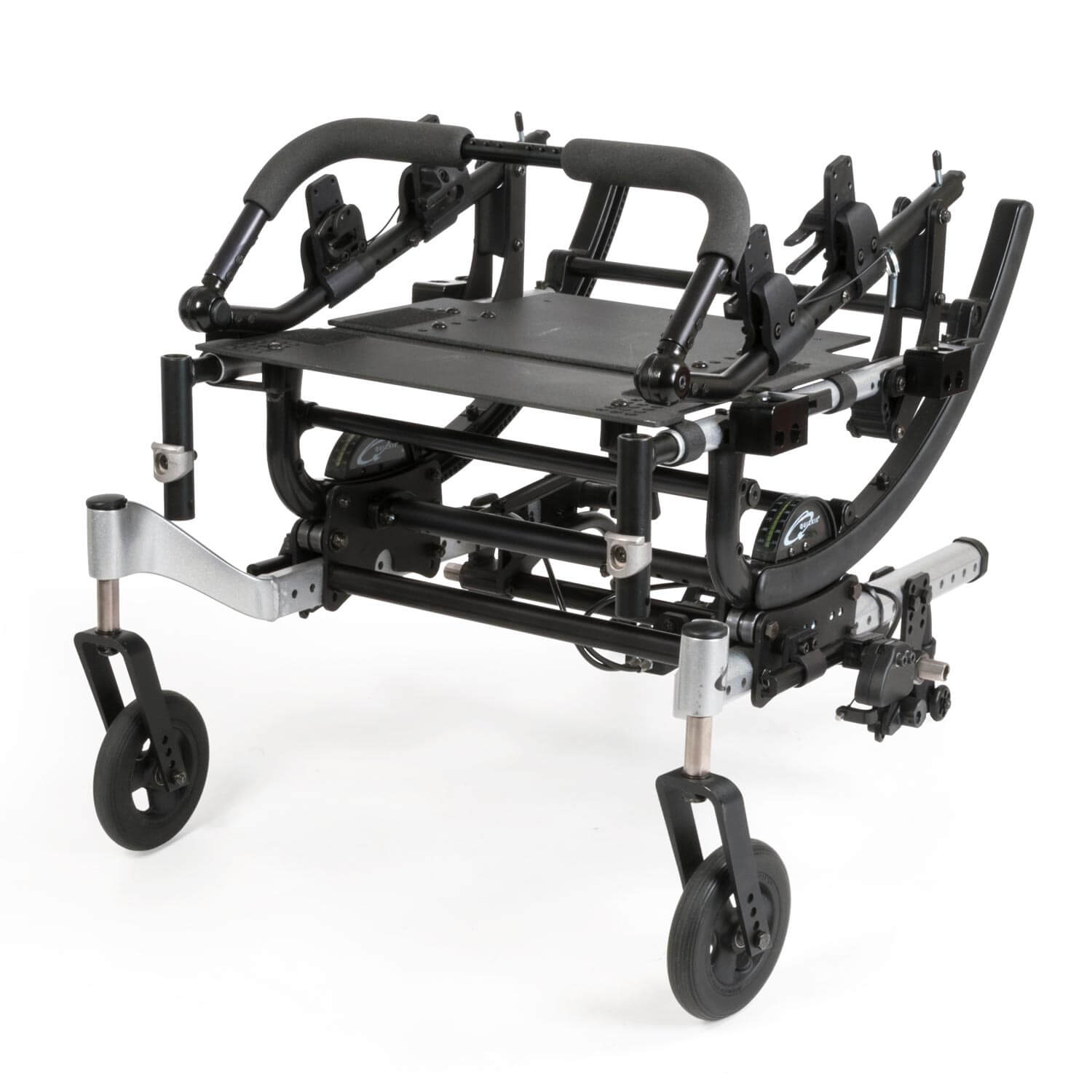

The QUICKIE IRIS® employs a unique tilt mechanism with a curved rocker arm, enabling the seat frame to rotate on the base frame while keeping the individual's center of gravity (COG) closely aligned with the chair's center of rotation (COR). This alignment is maintained throughout the tilt cycle, offering several advantages over other tilt systems. The IRIS allows the shortest wheelbase to enhance maneuverability without compromising stability. The alignment of COG and COR reduces the risk of front-loading the casters without sacrificing safety. Additionally, the optimal alignment minimizes the effort required for tilting, promoting smooth and effortless movement. The constant COG alignment helps eliminate issues associated with horizontal shifts in other tilt systems, such as triggers for spasticity, agitation in riders with cognitive issues, and protective extension reactions.

The QUICKIE IRIS features a Standard weight capacity of 300 lbs. and a Heavy Duty weight capacity of 400 lbs.

Power Tilt

Power Tilt

The Power Tilt feature puts the rider in charge of their own comfort all day long. With a simple toggle switch conveniently located on the armrest, the rider can effortlessly adjust their body position for maximum comfort, relaxation, and skin protection. Easy to use and designed to enhance their sitting experience, Power Tilt gives more control to the rider. This feature not only improves comfort, but also helps with sitting tolerance, allowing the rider to participate more independently in daily activities and connect better with the world and those around them. Power Tilt is available for the IRIS, IRIS Heavy Duty, and the SR45 models.

Attendant Control

Though the QUICKIE IRIS is effortless to tilt, with the Attendant Control, caregivers can tilt the rider without any manual effort. The control panel, displaying the battery gauge on top, eliminates the guesswork for charging time. Attendant Control is versatile and can be hung anywhere on the chair.

Toggle Switch

The Toggle Switch provides flexibility by being mountable either vertically or horizontally, catering to the rider's preferences for easy reach. Conveniently placed on the toggle switch, the charging port ensures easy access. The Power Tilt feature is also available as a retrofit kit for added convenience.

Empulse R20: Supporting Caregivers

Empulse R20: Supporting Caregivers

The Empulse R20 power-assist device makes it simple to help the caregiver push the wheelchair. It's handy uphill, downhill, and on long trips, all without affecting self-propelling or pushing. This foldable and lightweight device is easy to transport either attached or detached from the wheelchair using its backpack.

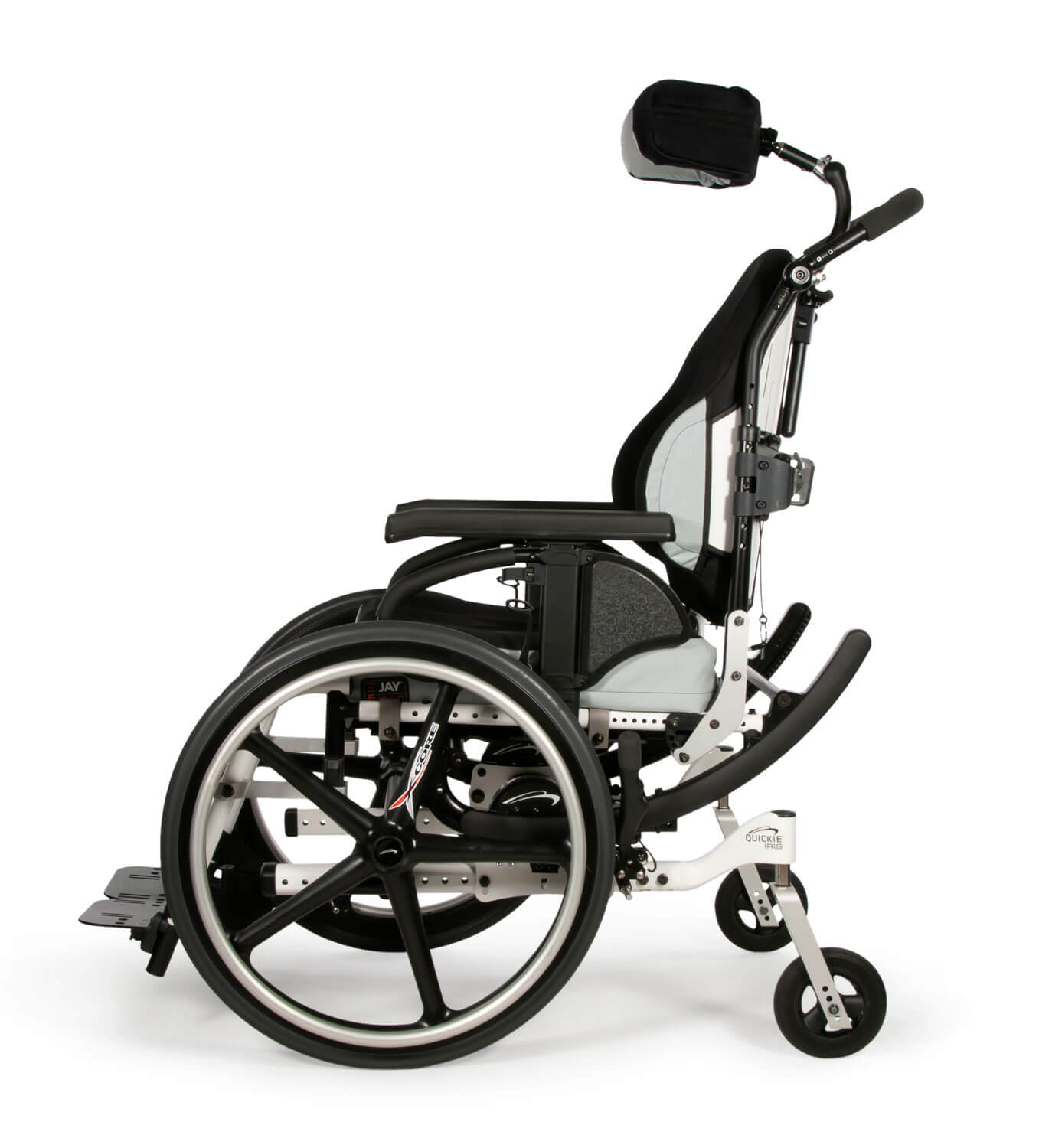

Reverse Configuration for Independent Mobility

Reverse Configuration for Independent Mobility

Opt for an IRIS with reverse configuration if full tilt for pressure distribution and the ability to self-propel is desired. With a larger wheel in the front, this setup enables the rider to have increased control of the wheel, enhancing self-initiated movement.

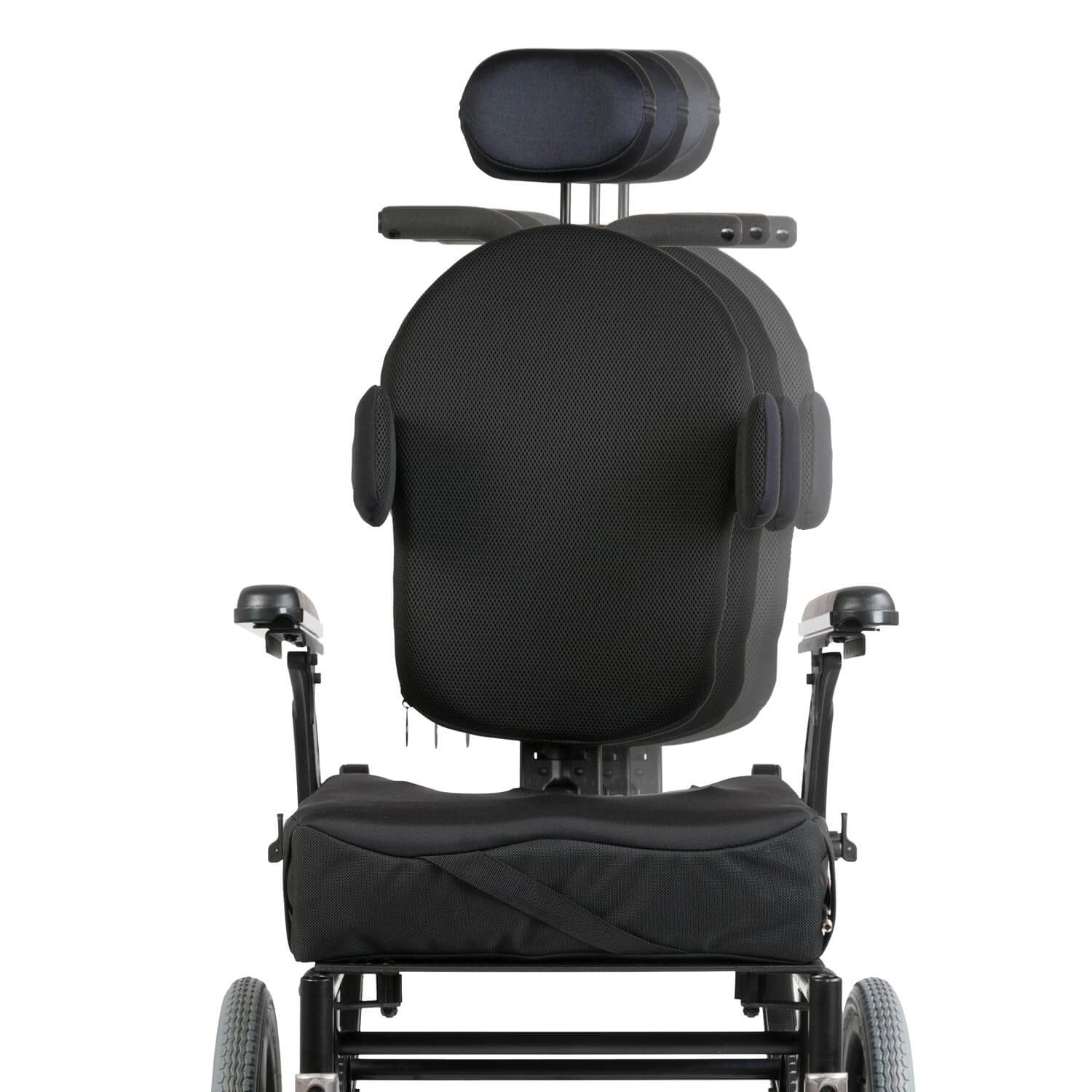

Ride Designs

Ride Designs

A Ride Designs Seating System works well on a QUICKIE IRIS to provide intimate support where needed, matching unique body curves while changing position in space. A Ride seating system also helps boost postural control and stabilize the pelvis and trunk, often resulting in increased performance and freedom of movement, while enhancing pressure distribution away from bony prominences.

Anchura de asiento:14" to 22"
Profundidad de asiento:14" to 22"
Altura delantera de asiento:12.5" to 19"
Altura trasera de asiento:12.5" to 19"
  • 40°
  • 55°
Back Height:
  • 15" to 21"
  • 18" to 24"

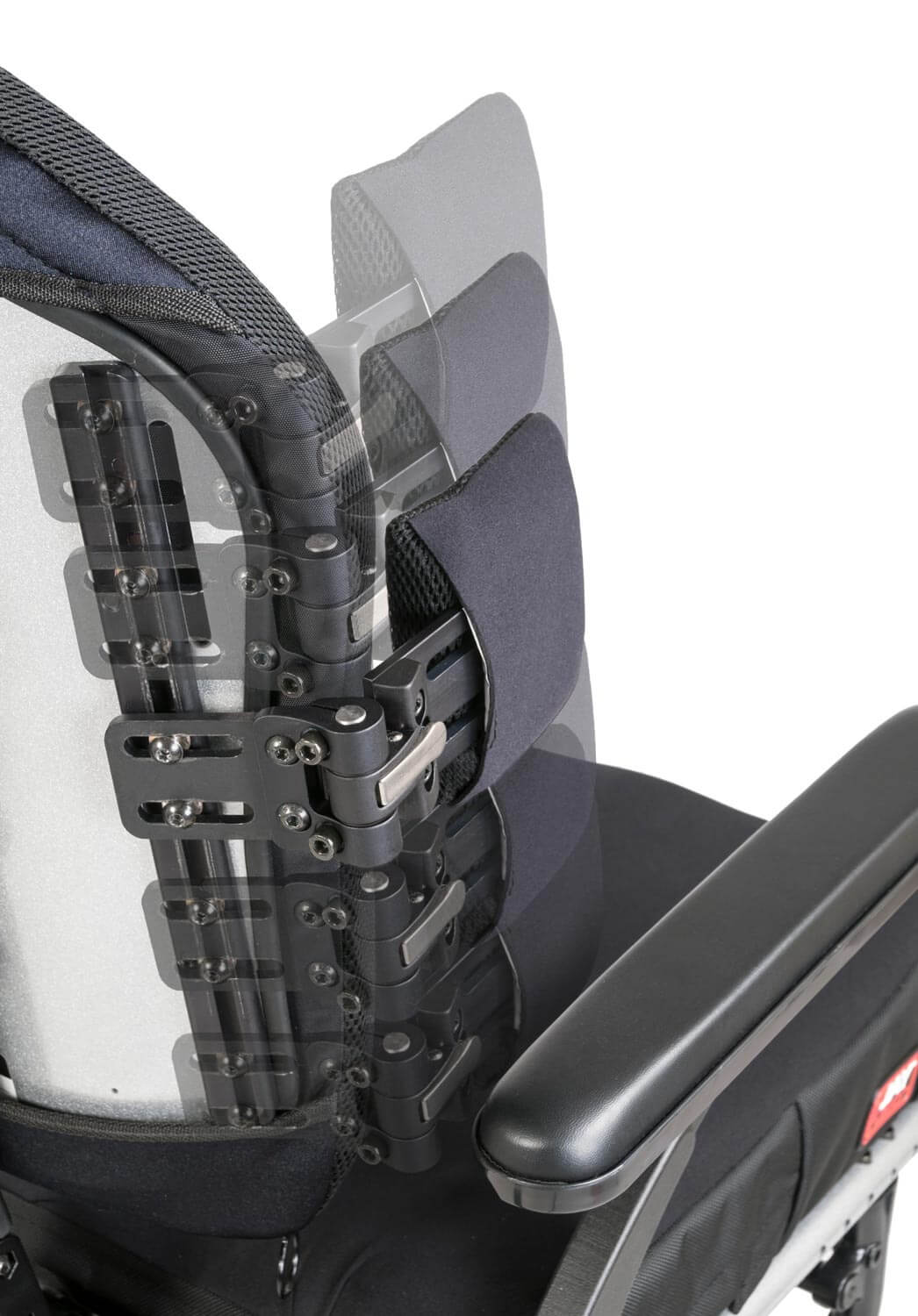

Back Angle Adjustment: -30° to 5°
Shipping Dimensions:
  • Boxed: 36" L x 28" W x 37" H and 20" L x 10" W 20" H
  • Palletized: 47" L x 40" W x 54" H
Product Information
Model Number:EIZ4-2
HCPCS Code:E1161
Starting Retail Price:
  • IRIS: $2,975
  • IRIS SE: $2,775
Frame Type:Frame Options
  • Standard
  • Heavy Duty
  • Vent/Battery Base Tray
  • Contrature Seat Frame

Frame Struts:
  • Fixed
  • Width Adjustable
Frame Material:Aluminum
User Weight Capacity:
  • Standard: 300 lbs.
  • Heavy Duty: 400 lbs.
Product Weight:39 lbs.
Average Shipping Weight:
  • Boxed: 90 lbs. and 15 lbs.
  • Palletized: 150 lbs.

Nuestros productos están en constante proceso de mejora, por lo que Sunrise Medical se reserva el derecho de cambiar el diseño de los mismos y las especificaciones indicadas sin previo aviso


Preguntas frecuentes

Yes, by raising and lowering the push handles in the rear side frame or back frame one can adjust the back height.

Your serial number is usually found on the frame underneath the seat (or on the cross brace of a folding wheelchair). It will be a white sticker with a barcode and a series of numbers.

Unfortunately we don't. However, nail varnish is an extremely inexpensive and easy way of fixing any small scratches or blemishes to your wheelchair's frame.

There are a number of different wheelchair cushions available for our products. You can view our complete range of JAY wheelchair cushions online. For the best comfort we advise you to contact your nearest authorized Sunrise Medical dealership.

Yes you can! You can find the list of available colors on the product's order form. If you're looking for something more unique, our Built-4-Me team can help supply a product to your specific needs.
