Quickie 7 Series

QUICKIE 7^R and 7^RS: designed to move with you

Find Your Dealer

QUICKIE 7^R and 7^RS: designed to move with you

The QUICKIE^® 7 Series redefines ultra lightweight wheelchair technology for the active user. Its customized ergonomics, premium materials, and open back design offer you ultimate freedom of movement. Where will you go?

Find Your Local Dealer

From $2425

This price is based on standard configuration only. This item may have multiple additional extras that are not included in the published price. Please see your local authorized dealer for a detailed quote.

Ver ejemplos simulación de color:

The color options shown are for reference only. They are not intended as accurate representations. Refer to the Quickie Color Brochure or a Quickie Color Ring for representations of Quickie colors.

Options and Prices

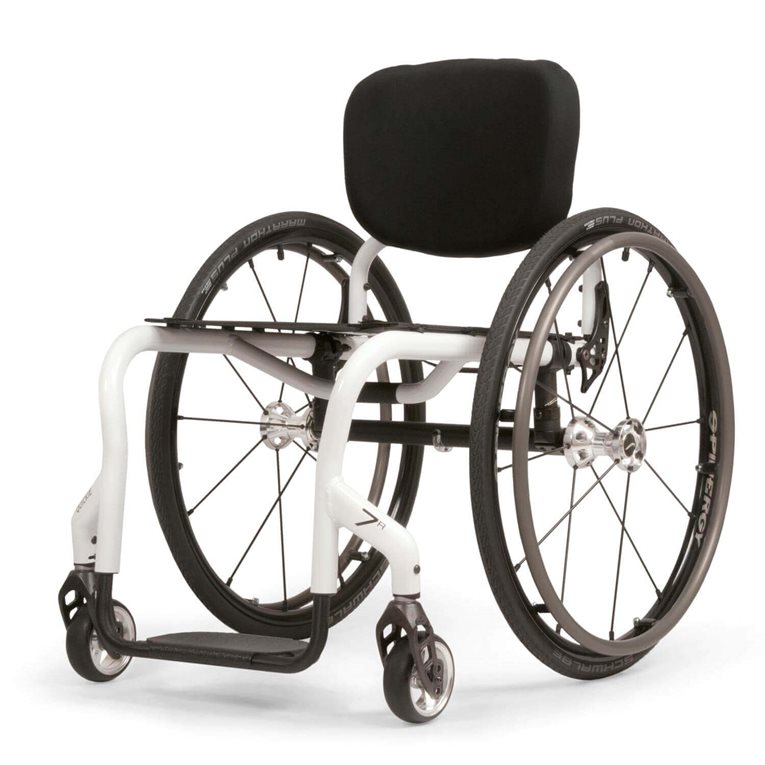

QUICKIE 7 Series Lightweight Rigid Wheelchair

Top of the Line Materials and Technology

The genius behind the 7 Series’ ultra lightweight frame is the 7000 Series aerospace aluminum that has been heat treated using ShapeLoc Technology. This process increases strength and allows for thinner, lighter weight tubing. With an 18% increase in the strength-to-weight ratio over previous designs, a 10% increase in stiffness, and a transport weight starting at 9.9 pounds*, the 7 Series chairs are light, but mighty.

Watch Brett Gravatt as he powers through his day with his lightweight and rigid Quickie 7^R.

*Transport weight for 7^RS

Freestyle Backrest System for Freedom of Movement

The Freestyle Backrest System’s unmistakable style makes your 7 Series chair a true original. It also breaks barriers to independence by providing a 360° range of upper body motion and lowering the overall weight of your chair.

7^R and 7^RS Models

Choose the 7^R if you want to make quick back angle adjustments to tailor your chair to various activities during the day.

Choose the 7^RS (pictured left) if you know exactly what you need. Its fully rigid backrest and axle plate reduce the overall chair weight by an average of 1 lb. and transfer the energy directly from your arms to the axles for the most efficient propulsion.

Hand Built Just for You

As an extension of you, your wheelchair should be tailor-built for you, your personality, and your lifestyle. The 7 Series offers our highest level of configurability with 3 caster settings, 2 frame lengths (per seat depth), 7 rear wheel options, and 9 rear tire options. You can also choose from our list of premium selections including the Frame Graphics (pictured right), 4-Link Suspension, QUICKIE Xtender Power Assist, and carbon fiber components.

Imágenes & Vídeos

Especificaciones

Dimensiones

Anchura de asiento:12" to 20"

Profundidad de asiento:12" to 20"

Altura delantera de asiento:16" to 21"

Altura trasera de asiento:13" to 20"

Back Height:8" to 20"

Back Angle Adjustment:Fore (-) 27° to Aft (+) 8°
(adjustable model only)

Ángulo de armazón:

75°
80°
85°

Camber:

Center of Gravity (COG) Adjustment:0" to 4"

Shipping Dimensions:31" L x 24" H x 24" W

Product Information

Model Number:EIR11

HCPCS Code:K0005

Starting Retail Price:

7^R: $2,545
7^RS: $2,850

Rendimiento/Pesos

Frame Type:

Standard
Classic
Welded Standard (7^RS)
Welded Classic (7^RS)
Depth Adjustable Back

Frame Material:Aluminum

Transit:Yes

User Weight Capacity:265 lbs.

Product Weight:7^R

Standard Configuration: 18.89 lbs.
Transport: 11.1 lbs.
Transport without Wheel Locks: 10.06 lbs.

7^RS

Standard Configuration: 17.67 lbs.
Transport: 9.88 lbs.
Transport without Wheel Locks: 8.84 lbs.

Weights based on common size (16" x 16") and can vary based on wheelchair configuration and material tolerances. Weights subject to change without notice.

Average Shipping Weight:50 lbs.

Nuestros productos están en constante proceso de mejora, por lo que Sunrise Medical se reserva el derecho de cambiar el diseño de los mismos y las especificaciones indicadas sin previo aviso

Documentación

Catálogos

Hojas de pedido con precios

Manuales de instrucciones

Despiece

Quickie® 7 Series Parts Manual

Otros documentos

Preguntas frecuentes

Can the backrest height be adjusted?

Yes, by raising and lowering the push handles in the rear side frame or back frame one can adjust the back height.

Where can I find the serial number on my wheelchair?

Your serial number is usually found on the frame underneath the seat (or on the cross brace of a folding wheelchair). It will be a white sticker with a barcode and a series of numbers.

I've scratched the frame of my wheelchair. Do you offer touch-up paint?

Unfortunately we don't. However, nail varnish is an extremely inexpensive and easy way of fixing any small scratches or blemishes to your wheelchair's frame.

What wheelchair cushions are available?

There are a number of different wheelchair cushions available for our products. You can view our complete range of JAY wheelchair cushions online. For the best comfort we advise you to contact your nearest authorized Sunrise Medical dealership.

Can I get my wheelchair in different colors?

Yes you can! You can find the list of available colors on the product's order form. If you're looking for something more unique, our Built-4-Me team can help supply a product to your specific needs.
