5R

Altamente regulable para mejorar su movilidad.

Altamente regulable para mejorar su movilidad.

La Quickie® 5R está diseñada para lograr un rendimiento superior día tras día, digno de una silla de ruedas rígida. A medida que usted y su ambiente evolucionan, o que usted logra mejorar sus habilidades de manejo, el marco y los componentes de la 5R se pueden ajustar para mejorar su movilidad.

Find Your Local Dealer

From $2370

This price is based on standard configuration only. This item may have multiple additional extras that are not included in the published price. Please see your local authorized dealer for a detailed quote.

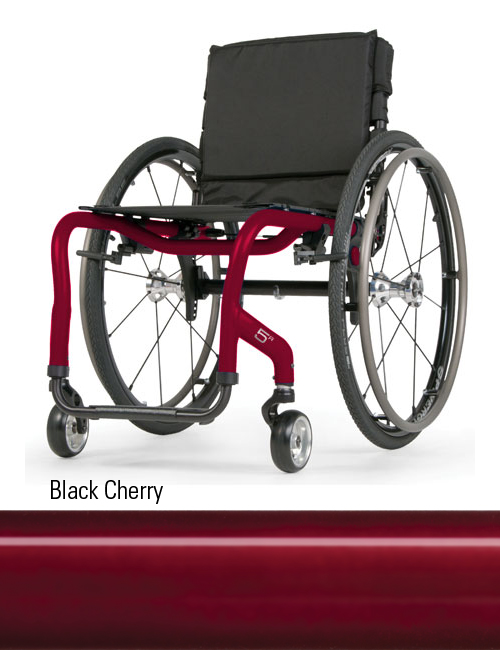

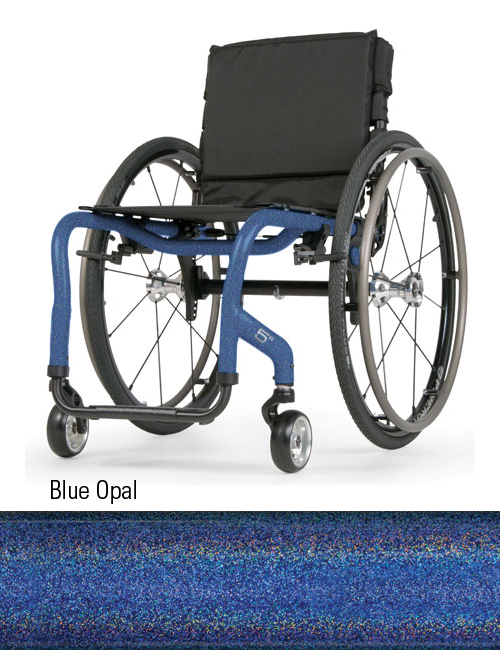

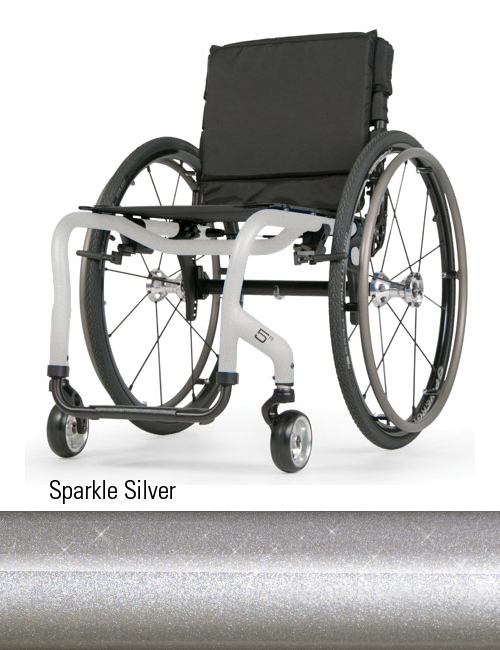

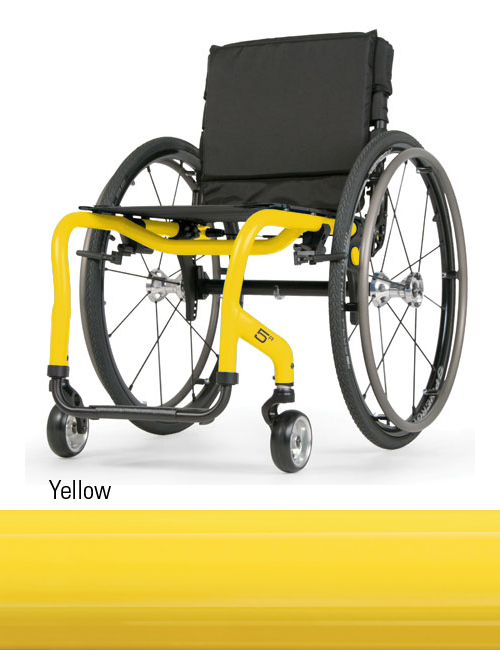

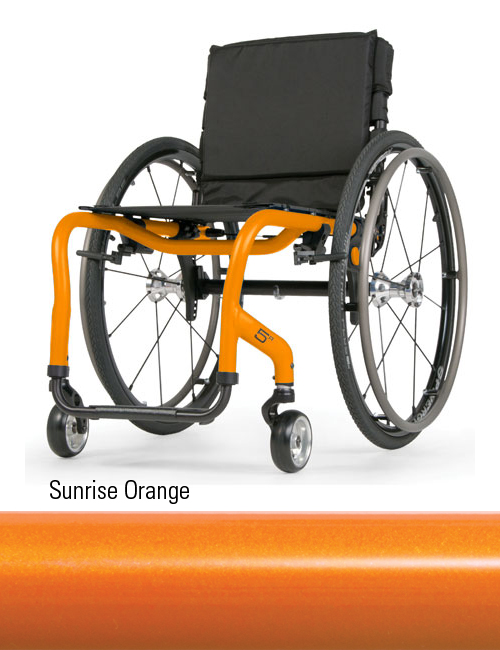

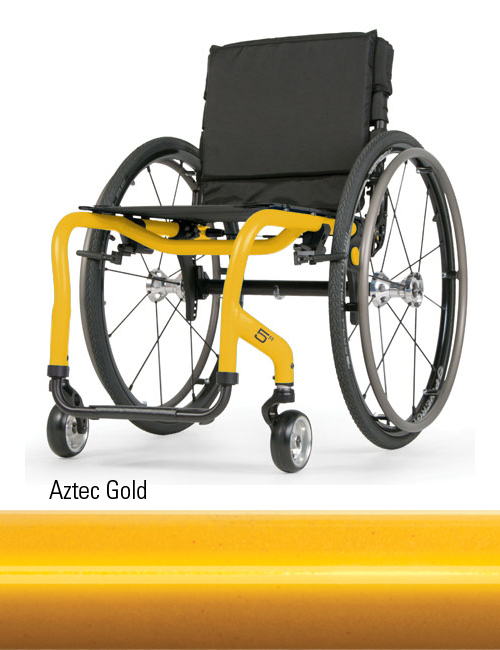

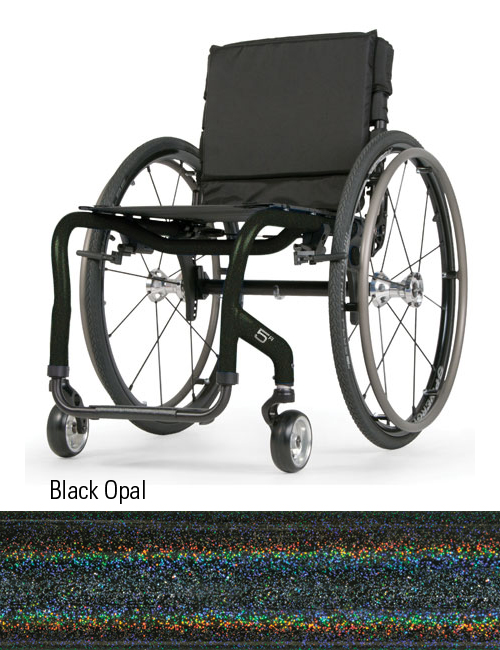

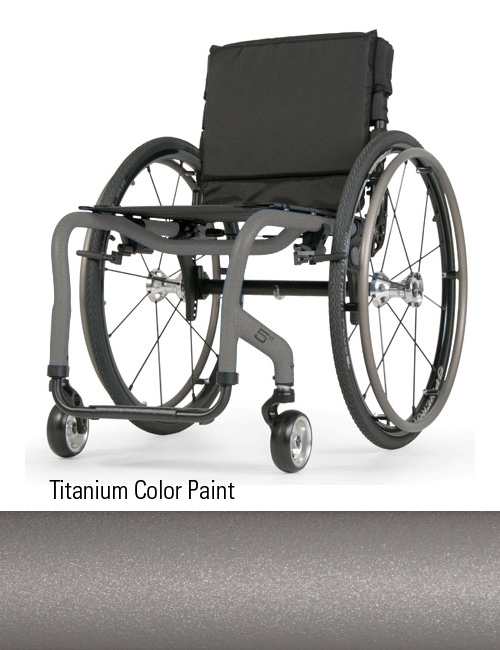

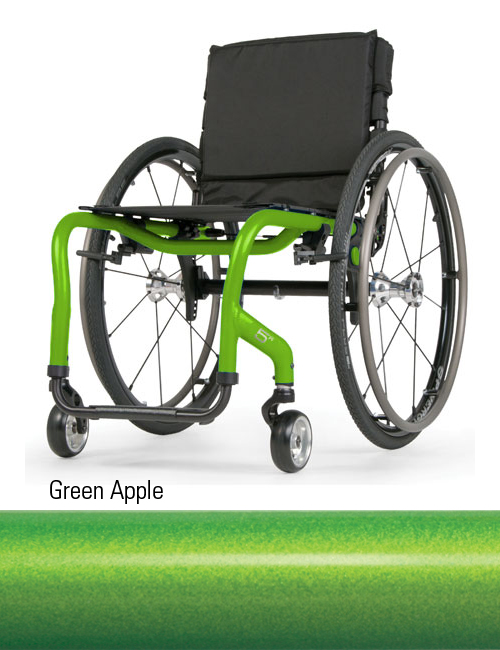

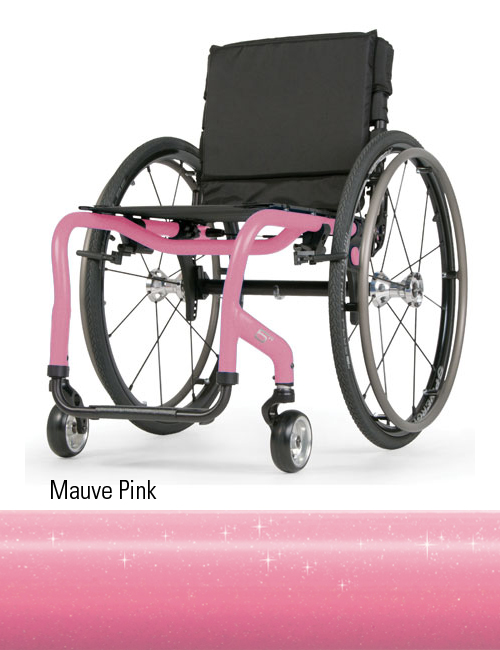

Ver ejemplos simulación de color:

The color options shown are for reference only. They are not intended as accurate representations. Refer to the Quickie Color Brochure or a Quickie Color Ring for representations of Quickie colors.

Options and Prices

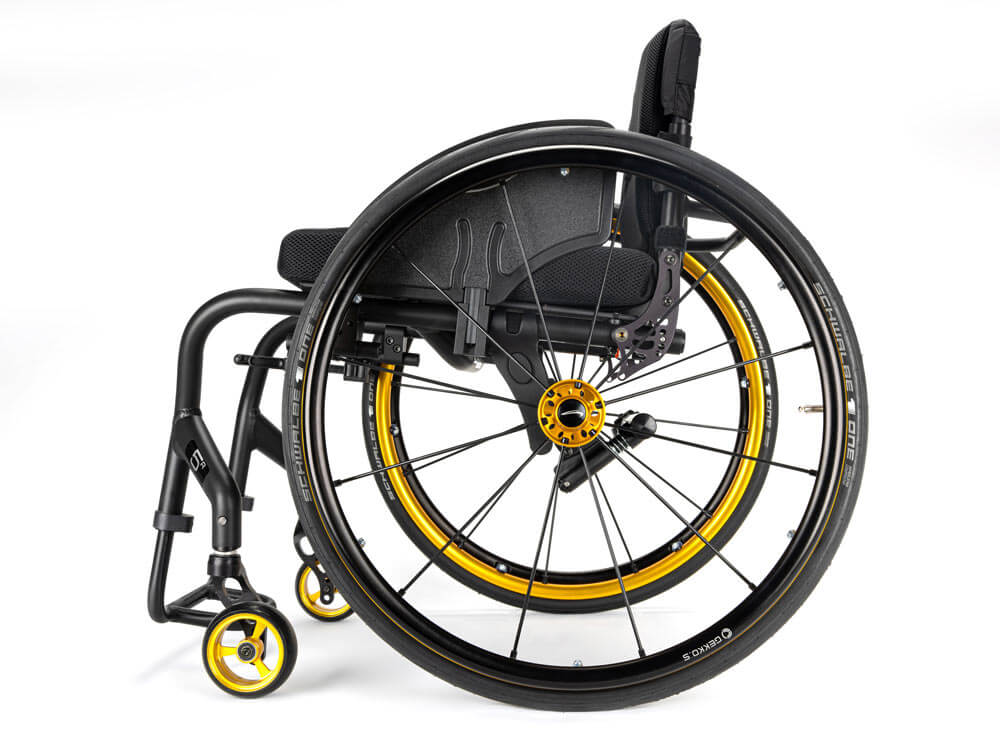

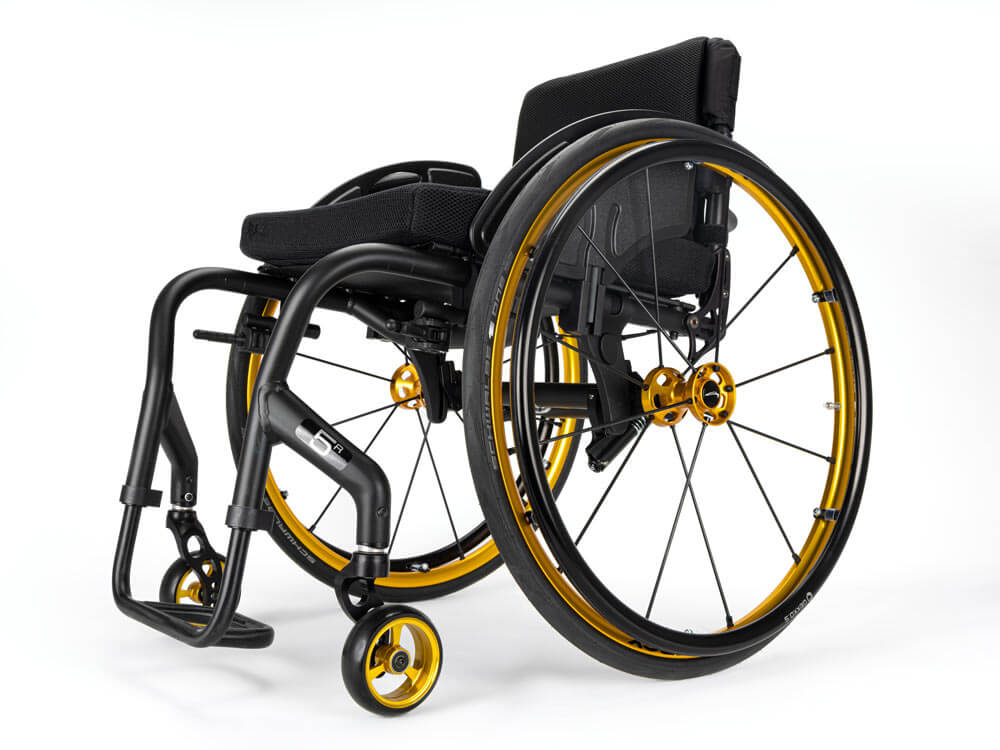

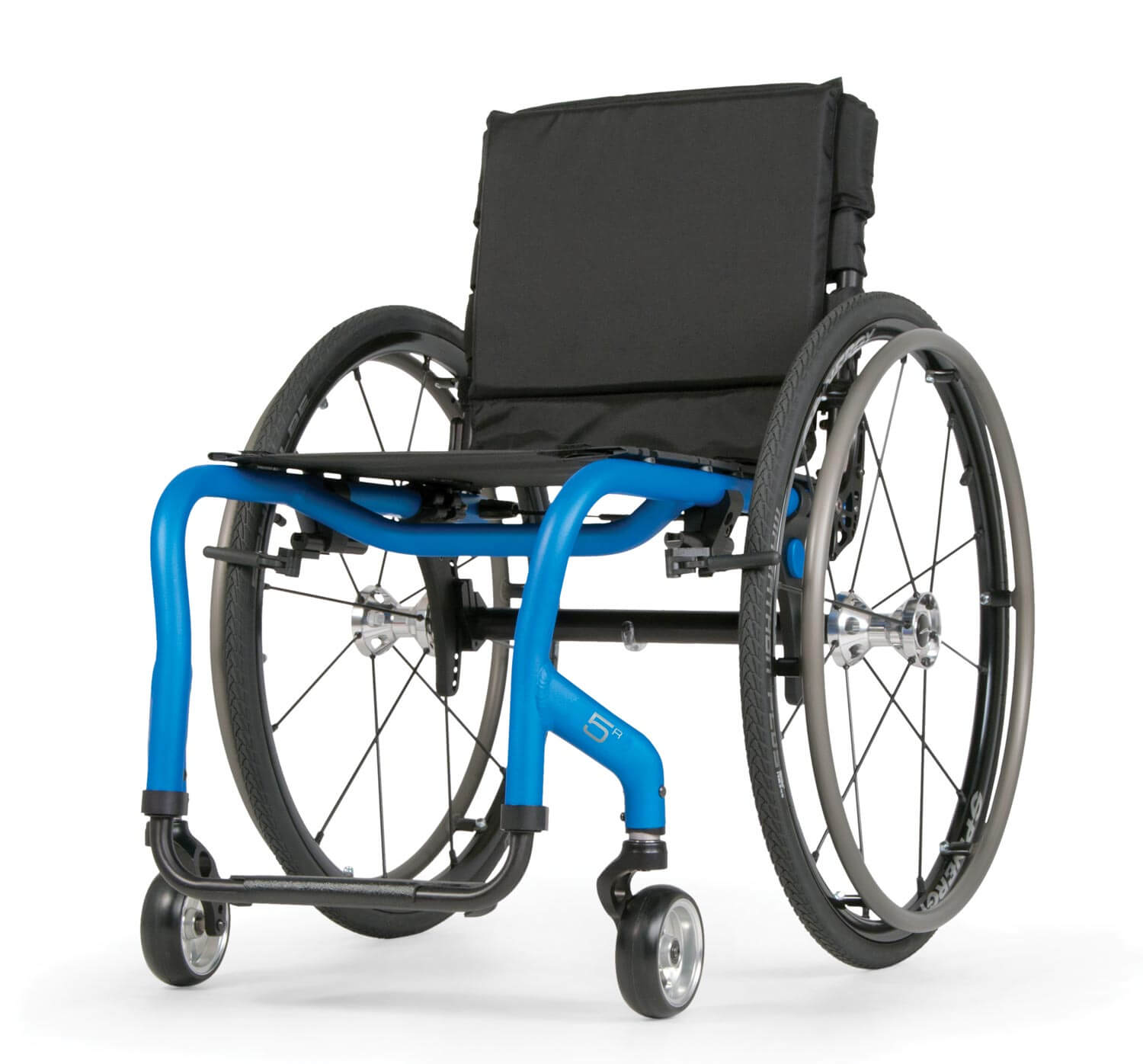

QUICKIE 5R Lightweight Rigid Wheelchair
Meet Leslie Peoples

Meet Leslie Peoples

Watch how Leslie explores her city with ease in the lightweight 5R.

Open Frame Design with Hydro-Formed Caster Link

Open Frame Design with Hydro-Formed Caster Link

The Quickie 5R’s open frame takes the proven ride quality and geometry that so many have loved about the GT and improves upon it with a swept-back, hydro-formed caster link for added style and a smooth ride.

The 5R offers two frame options. The Classic frame features a traditional frame length for maximum stability. The shortened Performance frame length offers maximum responsiveness.

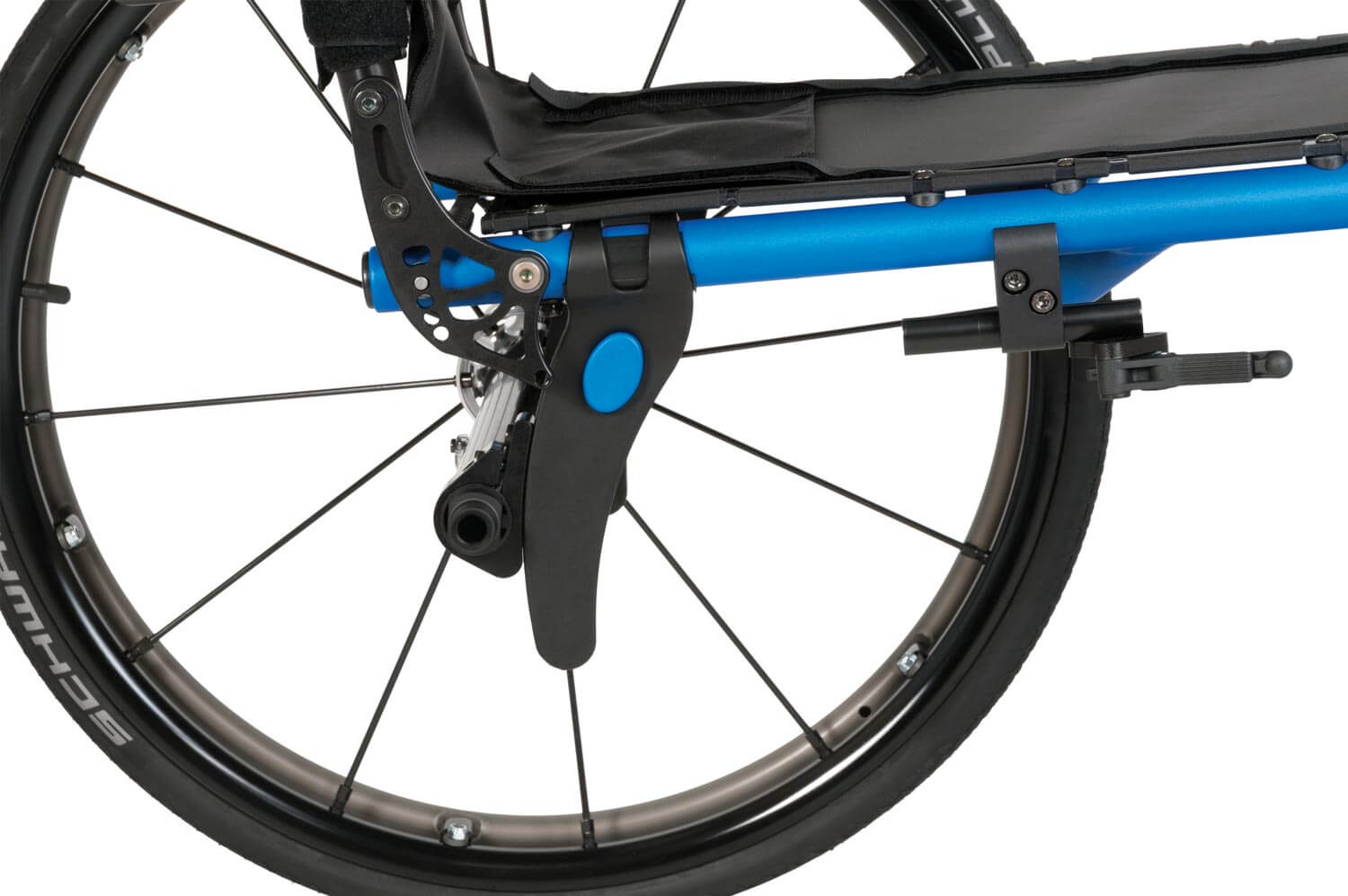

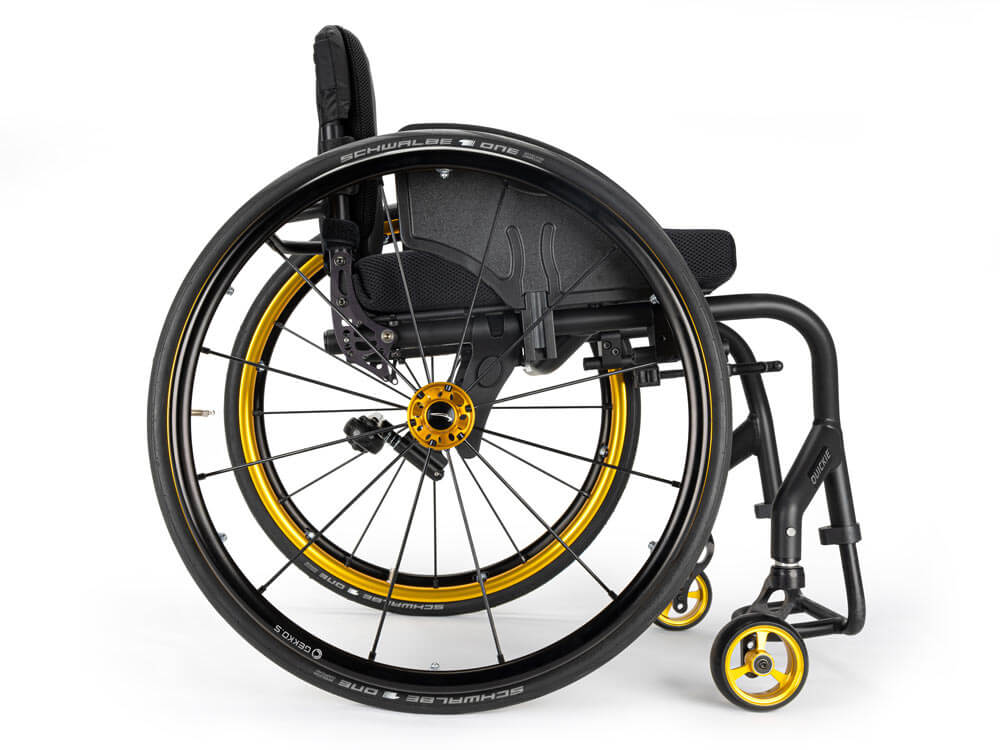

Swept-Back, Highly Adjustable Axle Plate Design

Swept-Back, Highly Adjustable Axle Plate Design

The swept-back axle plate design adds to the 5R's style and features a color window for an extra pop of color on your frame.

But it isn’t just for looks - it is also incredibly quick to adjust. Available in two lengths - short (4.5" of vertical adjustment) and long (6" of vertical adjustment) - this axle plate ensures you are getting the adjustment range you need without adding unnecessary weight.

Access to Premium Options

Access to Premium Options

The 5R offers premium options that can elevate your product.

Go with the XTR Suspension Frame, Mountain wheels, Knobby tires, and Frog Legs suspension forks for rugged chair performance.

Add the Quickie Xtender motorized wheels to multiply the force you apply to the handrims by four times.

JAY Seating Options

JAY Seating Options

Choose from JAY's superior cushions and backs to get the most out of your mobility system.

For lightweight skin protection, check out the JAY Lite or JAY X2.

For an incredibly versatile backrest, try the JAY J3 back...and don't forget to have the back shell painted to match or complement your chair at no extra charge.

Dimensiones
Anchura de asiento:12" to 20"
Profundidad de asiento:12" to 20"
Altura delantera de asiento:16" to 21"
Altura trasera de asiento:13" to 20"
Back Height:10" to 20"
Back Angle Adjustment:Fore (-) 17° to Aft (+) 8°
Ángulo de armazón:
  • 75°
  • 80°
  • 85°
Camber:
  • Choose between 4° and 8° with XTR Suspension
Center of Gravity (COG) Adjustment:-1.5" to 4"
Shipping Dimensions:31" L x 24" H x 24" W
Product Information
Model Number:EIR10
HCPCS Code:K0005
Starting Retail Price:$2,370
Rendimiento/Pesos
Frame Type:
  • Classic
  • Performance
  • XTR Suspension
  • Depth Adjustable Back
Frame Material:Aluminum
Transit:Yes
User Weight Capacity:265 lbs.
Product Weight:
  • Standard Configuration: 21.5 lbs.
  • Transport: 12.9 lbs.
  • Transport without Wheel Locks: 11.65 lbs.
Average Shipping Weight:50 lbs.

Nuestros productos están en constante proceso de mejora, por lo que Sunrise Medical se reserva el derecho de cambiar el diseño de los mismos y las especificaciones indicadas sin previo aviso

Documentación

Preguntas frecuentes

Yes, by raising and lowering the push handles in the rear side frame or back frame one can adjust the back height.

Your serial number is usually found on the frame underneath the seat (or on the cross brace of a folding wheelchair). It will be a white sticker with a barcode and a series of numbers.

Unfortunately we don't. However, nail varnish is an extremely inexpensive and easy way of fixing any small scratches or blemishes to your wheelchair's frame.

There are a number of different wheelchair cushions available for our products. You can view our complete range of JAY wheelchair cushions online. For the best comfort we advise you to contact your nearest authorized Sunrise Medical dealership.

Yes you can! You can find the list of available colors on the product's order form. If you're looking for something more unique, our Built-4-Me team can help supply a product to your specific needs.
